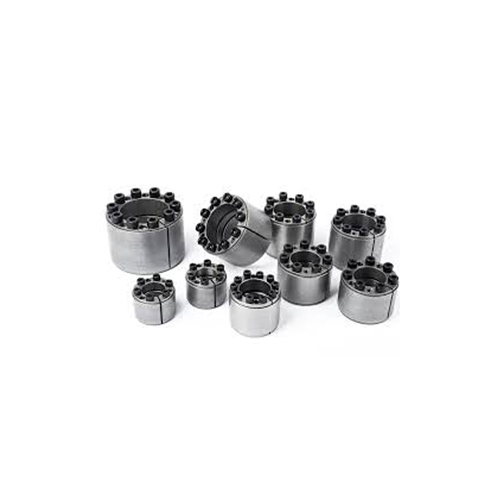

Send InquiryKeyless Power Lock Bush
Price 1000.0 INR/ Piece
MOQ : 1 Piece
Keyless Power Lock Bush Specification
- Usage
- Industrial
- Type
- Other
- Material
- Alloy Steel
- Size
- Standard
- Product Type
- Power Transmission Component
- Color
- GREY
- Clamping Method
- Friction fit
- Corrosion Resistance
- Yes
- Min Shaft Diameter
- 20 mm
- Disassembly
- Easy removal design
- Application
- Shafthub connection
- Max Shaft Diameter
- 150 mm
- Finish
- Phosphated or black oxide
- Load Capacity
- Up to 250 kNm
- Temperature
- -40C to 180C
- Speed
- Max 6000 RPM
- Tolerance
- Shaft +0.01 mm
- Hardness
- HRC 32-38
- Lubricating
- Pre-lubricated, maintenance-free
Keyless Power Lock Bush Trade Information
- Minimum Order Quantity
- 1 Piece
- FOB Port
- NEW DELHI
- Payment Terms
- Cash Advance (CA), Cash in Advance (CID), Cheque
- Supply Ability
- 5000 Pieces Per Month
- Delivery Time
- 10 Days
- Sample Policy
- Contact us for information regarding our sample policy
- Packaging Details
- BOXES
- Main Export Market(s)
- Asia
- Main Domestic Market
- All India
About Keyless Power Lock Bush
Keyless power lock bushes (or locking assemblies) are mechanical friction devices used to connect hubs (gears, pulleys, sprockets) to shafts without keys or splines. They provide a secure, high-torque, and backlash-free connection by generating radial pressure through tapered rings when tightened.
Key Features and Benefits
- No Backlash: Provides a 360-degree frictional connection, preventing movement between the shaft and hub.
- Easy Assembly/Removal: Eliminates the need for keyways and allows for precise axial and radial positioning, reducing installation time.
- High Torque Transmission: Suitable for heavy-duty applications due to high frictional contact.
- Self-Centering: Maintains concentricity between components.
- Protection: Reduces fretting corrosion and stress concentrations compared to keyed connections.
Common Applications
- Gearboxes and motors.
- Conveyor systems.
- Timing pulleys, cams, and sprockets.
- Heavy industrial machinery.
Types of Keyless Locking Assemblies
- Internal Locking: Placed between the shaft and hub.
- Double Taper: Utilizes two taper rings for secure clamping.
- Single Taper/Nut: Uses a locking nut to apply axial force.
Common materials include alloy steel, providing high durability for industrial applications.
Engineered for Industrial Strength
With a remarkable load capacity of up to 250 kNm and compatibility with shaft diameters from 20 mm to 150 mm, the Keyless Power Lock Bush is designed to meet the rigorous demands of industrial applications. Its robust alloy steel construction and carefully engineered friction fit ensure enduring shaft-hub connections, even at high speeds and variable temperatures.
Maintenance-Free and Easy to Disassemble
This keyless bush is pre-lubricated, offering a genuine maintenance-free experience. The easy removal design allows for swift disassembly and reinstallation, minimizing downtime and simplifying regular equipment checks or part replacements. This feature increases operational efficiency and prevents unnecessary delay in demanding industrial operations.
Superior Protection and Versatility
Finished with phosphated or black oxide coatings, the bush delivers outstanding corrosion resistance, ensuring long-term reliability in harsh environments. Its versatility makes it suitable for a wide range of industrial machines and systems, offering consistent performance regardless of temperature or speed variations.
FAQ's of Keyless Power Lock Bush:
Q: How does the friction fit clamping method benefit shaft-hub connections?
A: The friction fit clamping method provides a secure, backlash-free connection between the shaft and hub without requiring a traditional keyed slot. This enhances torque transmission, minimizes stress concentration, and allows for easier installation and removal.Q: What is the operational temperature range for the Keyless Power Lock Bush?
A: This bush is designed to operate reliably in a wide temperature range from -40C to 180C, making it suitable for diverse industrial environments including those with extreme thermal variations.Q: When should I choose a keyless bush over a traditional keyed connection?
A: You should opt for a keyless bush when you require high torque transfer, minimal installation time, easy component replacement, and reduced maintenance. It is also ideal in applications with frequent dismantling or where precise tolerance is critical.Q: Where can the Keyless Power Lock Bush be used?
A: The bush is widely used in industrial applications such as conveyors, gearboxes, pumps, and other machinery that demand reliable shaft-hub connections, especially in industries like manufacturing, processing, and mining.Q: What is the maximum shaft diameter supported, and can non-standard sizes be accommodated?
A: The standard design supports shaft diameters from 20 mm up to 150 mm. For specific application needs or non-standard sizes, you may contact the manufacturer, supplier, or trader in India for possible customization options.Q: What steps are involved in the installation and removal process?
A: Installation involves positioning the bush onto the shaft and hub, then tightening the screws to establish the friction fit. Removal is straightforward, thanks to the easy removal design, which allows you to loosen the screws and slide the bush off without special tools.Q: What are the main benefits of using this product in industrial machinery?
A: Key benefits include high load capacity, fast and maintenance-free installation, superior corrosion resistance, and adaptability to a wide variety of shaft sizes and industrial applications. This ensures long-term durability and operational reliability.
